Elegant Design: Features a sleek black PSU casing with full black mesh cables for a sophisticated look.
ATX12V Compliance: Compatible with ATX12V Ver.2.30 and Ver.2.31 standards.
High Efficiency: Delivers up to 85% efficiency for optimal performance.
Extended 12V Rail: Provides high compatibility and extreme current output.

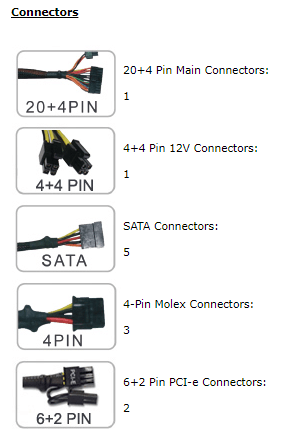

Longer Cables: Includes 20+4 and 4+4 pins extending up to 550mm, simplifying installation in high-end tower cases.

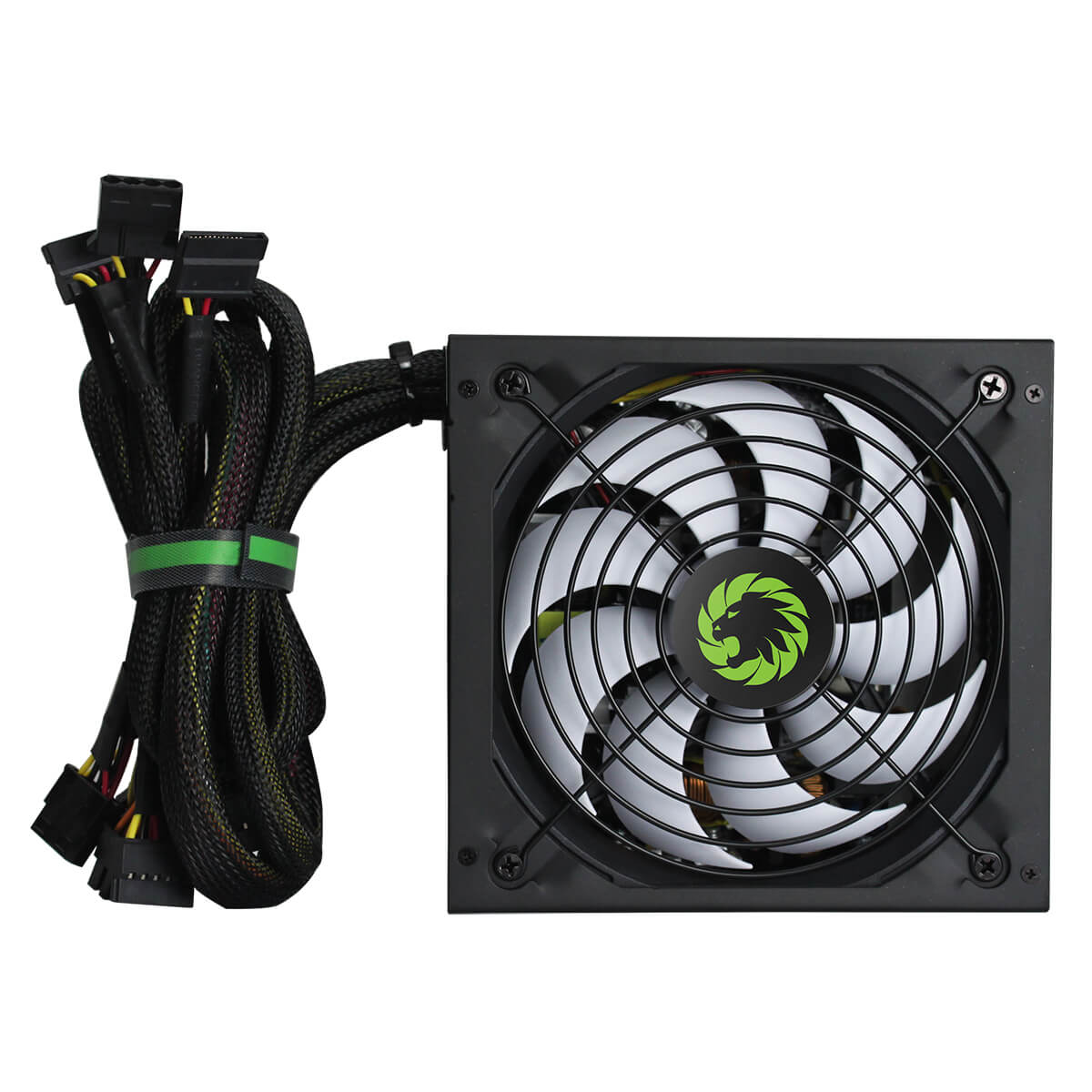

Silent Fan: Equipped with a 14cm black fan and smart thermal control for quiet operation.
Comprehensive Protection: Offers full protection with OVP, UVP, OPP, SCP, and SIP.
Certified: Meets CE safety and EMC standards, and is eco-friendly, compliant with RoHS and Erp 2013 directives.

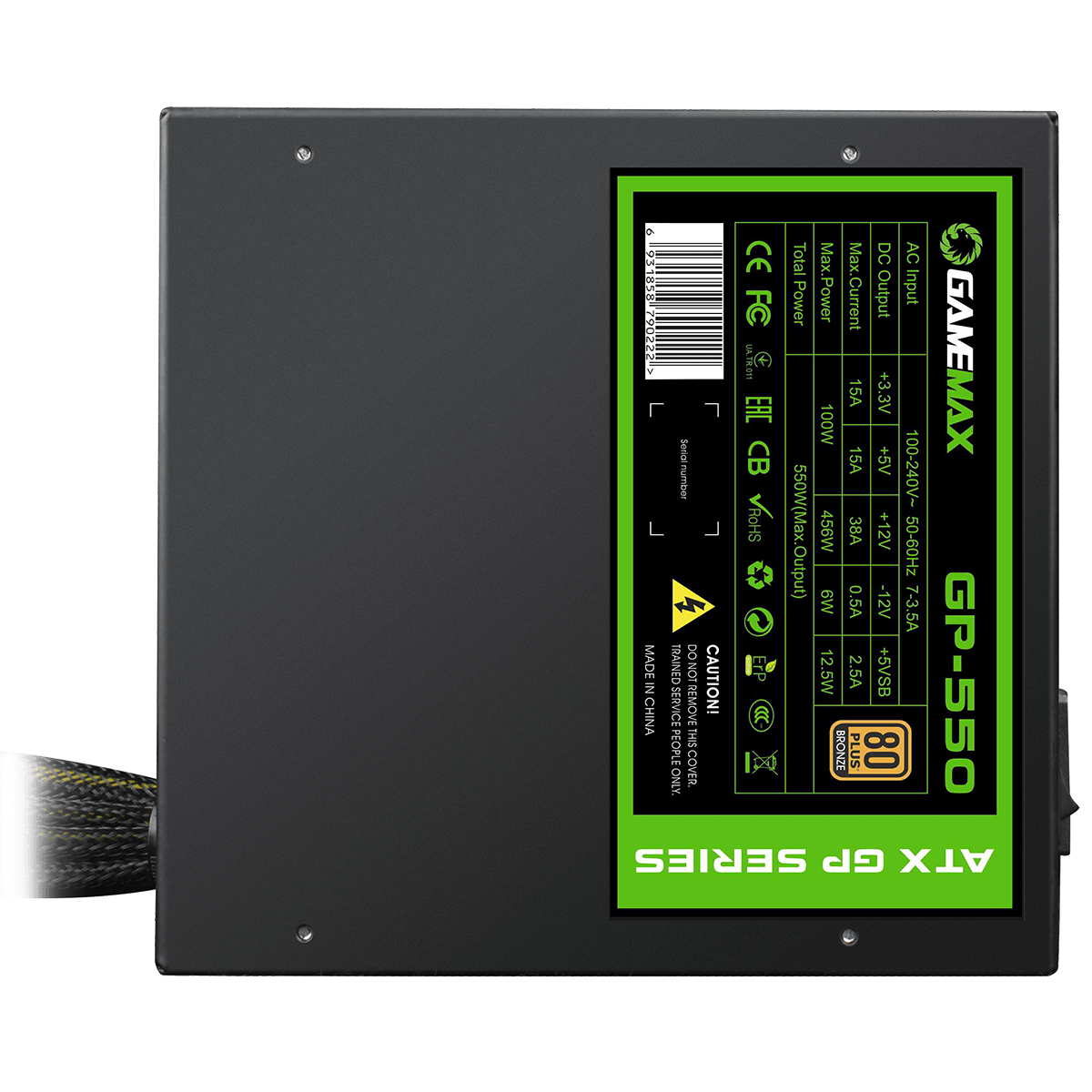

AC INPUT: 100-240 VAC 3.5-7A 50-60Hz | |||||
DC Output Max |
+3.3V | +5V | +12V1 | -12V | +5VSB |
15A | 15A | 38A | 0.5A | 2.5A | |
550W |
Manufacturer Part Number: | GP550 |
EAN Number: | 6931858790222 |
Has Mains Plug: | No |
Colour: | Black |
What’s In The Box: | Power Supply Screws Manual 2 x Cable Ties |
Unit (Product) Dimensions (mm): | 150mm x 85mm x 140mm (W x H x D) |
Packaging Dimensions (mm): | 300mm x 180mm x 115mm (W x H x D) |
Net Weight (KGs): | 1.6 KGs |
Gross Weight (KGs): | 2 KGs |
Dimensions: | 150mm x 85mm x 140mm (W x H x D) |
Input Voltage: | 100-240 VAC |
Input Current: | 3.5-7A |
Input Frequency Range: | 50-60Hz |
PFC: | Active PFC >.99 |
Power Good Signal: | 100-500ms |
Hold Up Time: | >17ms |
Efficiency: | > 81% (85% max) |
MTBF: | > 100,000 Hours |
Protection: | OVP / UVP/ OTP / OCP/ OLP/ OPP/ SCP |
Power: | 550W |
Operation Temperature: | 140mm Ultra Silent Fan |
Safety: | CE / FCC / CB |
Cooling: | 140mm Ultra Silent Fan |
Noise: | <25dBa |
80 Plus Certified: | Yes – 80 Plus Bronze |
The GameMax GP PSU range comes with 2 year warranty for units bought after 1st Jan 2023.
