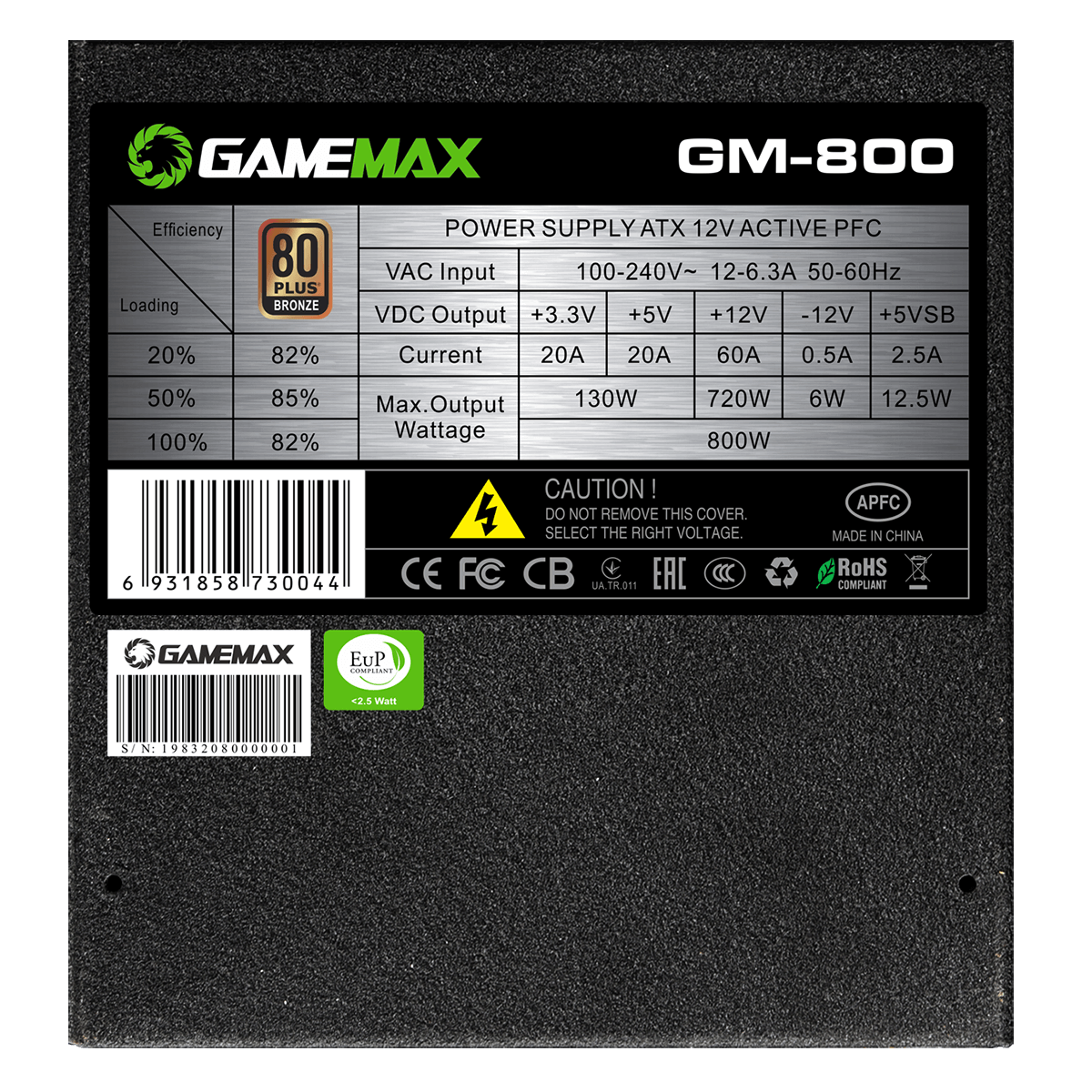

AC INPUT: 100-240 VAC 6.3-12A 50-60Hz | ||||||
DC Output Max |
+3.3V | +5V | +12V1 | +12V2 | -12V | +5VSB |
20A | 20A | 30A | 30A | 0.5A | 2.5A | |
800W |
Manufacturer Part Number: | GM-800 |
EAN Number: | 6931858730044 |
Has Mains Plug: | No |
Colour: | Black |

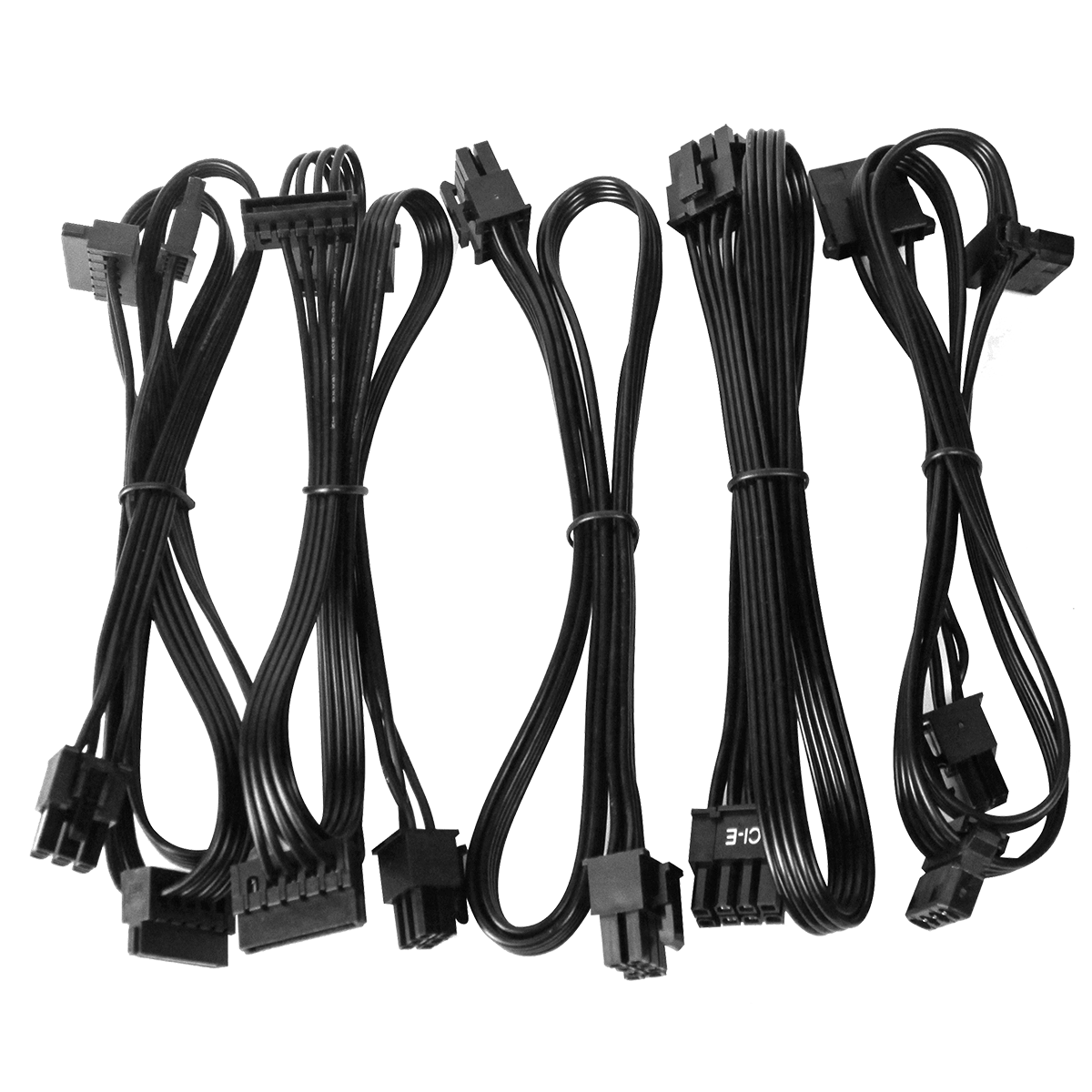

What’s In The Box: | Power Supply Screws Manual 5 x Output Cables 2 x Cable Ties |
Unit (Product) Dimensions (mm): | 160mm x 85mm x 150mm (W x H x D) |
Packaging Dimensions (mm): | 335mm x 242mm x 122mm (W x H x D) |
Net Weight (KGs): | 2.1 KGs |
Gross Weight (KGs): | 2.8 KGs |
Dimensions: | 160mm x 85mm x 150mm (W x H x D) |
Input Voltage: | 100-240 VAC |
Input Current: | 6.3-12A |
Input Frequency Range: | 50-60Hz |
PFC: | Active PFC >.99 |
Power Good Signal: | 100-500 ms |
Hold Up Time: | >17ms |
Efficiency: | > 81% (85% max) |
MTBF: | > 100,000 Hours |
Protection: | OVP / UVP/ OTP / OCP/ OLP/ OPP/ SCP |
Power: | 800W |
Operation Temperature: | 0-40°C |
Safety: | CE / FCC / CB |

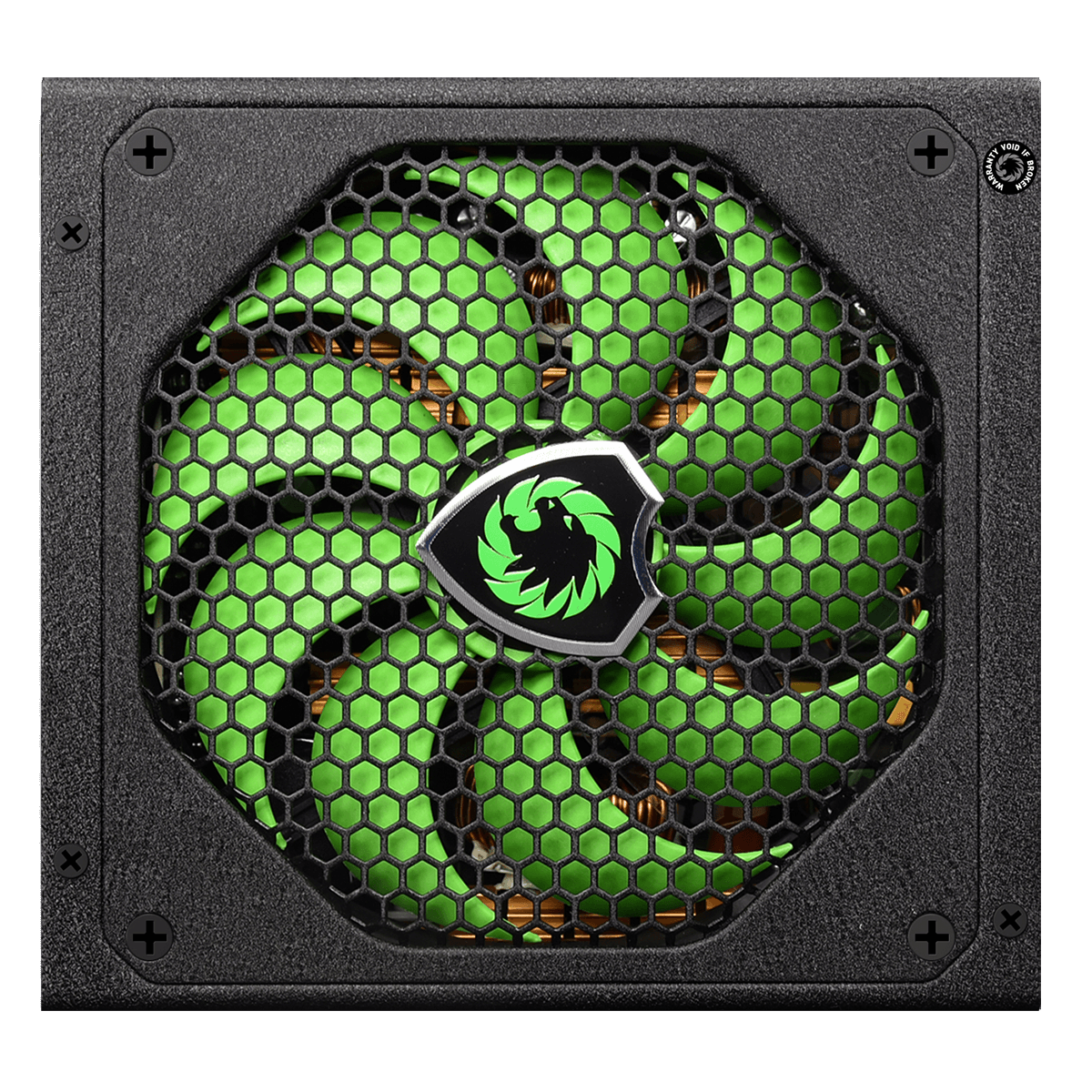

Cooling: | 140mm Ultra Silent Fan |
Noise: | <25dBa |
80 Plus Certified: | Yes – 80 Plus Bronze |
The GameMax GM PSU range comes with 2 year warranty for units bought after 1st Jan 2023.
The GameMax Semi-Modular Series offers a compact and quiet power supply solution with a semi-modular design. This allows you to connect only the cables your system requires, promoting a cleaner look and better airflow inside your case. With high 80 PLUS efficiency, reduced ripple, and enhanced electrical stability, this PSU ensures reliable performance and protection. It’s designed for durability and provides total confidence for your next system build, and is fully compatible with 6th Generation Skylake processors.
